Slimline LED Mimics & Cabinets

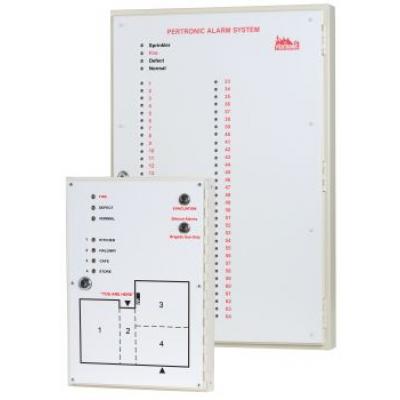

Pertronic Slimline LED Mimics provide remote indication of the fire alarm panel status. The mimics are compatible with the F220, F100A, F16e or F4 fire alarm panels. The mimic wiring (RS485 and power) is monitored by the fire panel.
Slimline LED mimics are supplied with one 12-way LED module (F100PDB12), providing 4 global indicators (Sprinkler, Fire, Defect and Normal).
Additional 8-way display boards (F100PDB) may be installed to provide additional indicator LEDs for F220, F100A, F16e or F4 fire alarm systems.
The LEDs are normally configured to display zonal alarm. In analogue addressable systems, individual LEDs may be configured to display other information. Please refer to the Technical Manual for information on configuring LEDs.
Pertronic analogue addressable systems can use large numbers of LEDs. The Pertronic LED zone address offset board (LAC12W) provides a numerical offset to the first and consecutive LEDs on a 12-Way display board.
Slimline LED Mimics are supplied complete with bell cut-off (BCO) and evacuation key switches. Also supplied are blank customisable index panels, which need to be drilled and engraved to suit project requirements.
Features
- Connects to RS485 Mimic Bus of:
- Pertronic F220, F100A, F16e or F4 (F4-RMAX)
- F100A panel network card (NETCARD)
- Slimline LED mimic cabinet supplied with blank customisable index
- Four sizes available for the LED mimic cabinets
- Provides remote indication of the fire alarm panel status
- Bell Cut-Off (BCO) and Evacuation key switches are supplied
- Available in rear service and front service
- Empty cabinet with blank customisable index available
- Up to 255 LEDs in F100A systems
- Also compatible with Pertronic F120A
